Required devices

The program requires to claim devices in groups named box0, box1, box2… with device names as listed below in bold:

// Names of lines the program expects to be able to claim

NOSEPOKE                // input

LEFTLEVER                // input

RIGHTLEVER                // input

LOCOBEAM_FRONT        // input

LOCOBEAM_MIDDLE        // input

LOCOBEAM_REAR        // input

HOUSELIGHT                // output

PUMP                        // output

DIPPER                // output

LEFTLEVERCONTROL        // output

RIGHTLEVERCONTROL        // output

LEFTLIGHT                // output

RIGHTLIGHT                // output

PELLET                // output

TRAYLIGHT                // output

CENTRELIGHT                // output

CLICKER                // output

TONE                        // output

// Aliases used while the program is in full flight, which it therefore expects not to be present on the server:

StimulusOne

StimulusTwo

ActiveLever

ActiveLeverControl

LeverLight

OppositeLight

Please ensure that these devices are available and listed in the device definition file in use by the server.

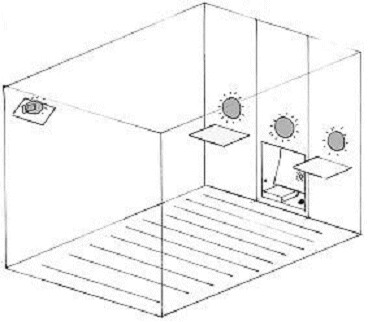

This is the type of operant chamber we're talking about:
